I have been reading quite a few blogs about analyzing patches for CVEs and generating exploits based on the difference in code between the vulnerable and the fixed versions (diff). One of my favorites is this blog from the folks at Assetnote about a CVE in Fortigate. While this level of reverse engineering is waaaay beyond what I can even think of attempting, I also read articles about simpler exercises, such as this for a CVE in Apache Airflow - which is a direct inspiration for this blog.

Apache Airflow is an open-source platform for creating, scheduling, and managing complex workflows and data pipelines programmatically. Apache Airflow uses Directed Acyclic Graphs (DAGs) to define and schedule workflows as a series of interdependent tasks, ensuring a clear execution order without cycles. DAGs are Python-based, allowing dynamic task definitions and flexible scheduling. DAGs are defined in $AIRFLOW_HOME/dags folder. Airflow also has a plugin manager built-in that can integrate external features to its core by adding files in the $AIRFLOW_HOME/plugins folder.

Looking at the list of Airflow CVEs, I settled on exploring CVE-2024-45034 which is an arbitrary code execution issue.

CVE-2024-45034

CVE-2024-45034 is an arbitrary code execution vulnerability which affects Airflow < 2.10.1. The description states the CVE “allows DAG authors to add local settings to the DAG folder and get it executed by the scheduler, where the scheduler is not supposed to execute code submitted by the DAG author”. The patch for this CVE is added in this pull request. The changes are made to settings.py. The patch appears quite simple:

  • In the vulnerable version, the DAGS_FOLDER and the PLUGINS_FOLDER are added to sys.path before executing import_local_settings.
  • In the patched version, the DAGS_FOLDER and the PLUGINS_FOLDER folder are added to sys.path after executing import_local_settings.

One can make an educated guess that $AIRFLOW_HOME/dags maps to DAGS_FOLDER and $AIRFLOW_HOME/plugins maps to PLUGINS_FOLDER. It can be inferred from the patch that something interesting happens in import_local_settings which deserves deeper investigation. Looking at import_local_settings we see this code:

  def import_local_settings():
    """Import airflow_local_settings.py files to allow overriding any configs in settings.py file."""
      try:
          import airflow_local_settings
      ...

In the vulnerable version, it can be seen that since the DAGS_FOLDER and the PLUGINS_FOLDER are appended to sys.path before executing import_local_settings. Therefore, adding a file named airflow_local_settings.py to one of these folders will lead to it being executed by import_local_settings. This would lead to arbitrary code execution. The DAGS_FOLDER and the PLUGINS_FOLDER are meant to be writable by the users - thereby allowing any user to exploit this vulnerability by adding malicious code to a file named airflow_local_settings.py in either the DAGS_FOLDER or the PLUGINS_FOLDER

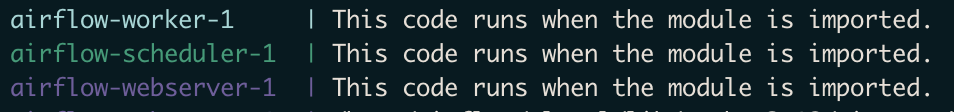

I created a simple airflow_local_settings.py file in my $AIRFLOW_HOME/dags folder with this line print("This code runs when the module is imported."). I then restarted Airflow. Looking at the logs, I could see that this line was printed when the containers started. The CVE description states that the code will be executed by the scheduler. However, I noticed it was executed by the webserver, the worker, and the triggerer as well. More on this later.

local-settings-imported

code-exec-1

code-exec-2

Testing on a fixed version

After reproducing the CVE in Airflow 2.9, I decided to see what happens if I try the same thing on a patched version. So I set up Airflow 2.10.1 using the Docker setup instructions. Then I performed the same steps I tried with 2.9. I observed that the code from import_local_settings is still executed by the scheduler. It was however not run from the webserver, the worker, and the triggerer as with 2.9.

As the CVE specifically mentioned the scheduler as the component that runs the arbitrary code and this also happened in the fixed version, I thought the CVE was not completely fixed. Therefore I reported this to Apache Airflow security.

Response from Apache

The Apache security team was very prompt in their response. They let me know within a few days that my finding was invalid. They told me in polite words to RTFM. In my excitement to report my findings, I had neglected to read the security model documentation for Apache Airflow, specifically this line “In case of Local Executor and DAG File Processor running as part of the Scheduler, DAG authors can execute arbitrary code on the machine where scheduler is running”. As I was running my Airflow through Docker, this statement applies to my setup. This was also why I noticed that for me the arbitrary code was running on all containers and not just the scheduler.

Between the time of me reporting this and now, it appears that the Docker setup instructions page has been updated to show a warning at the top stating that this way of using Airflow provides no security guarantees and therefore should not be used in production. They recommend using a Kubernetes setup instead.

Conclusion

This was an entertaining exercise. Reverse engineering a patch was quite fun. The added excitement that I may have found another CVE was quite a highlight, albeit only for a few days. However the main lesson I learnt from this excursion was that I should read the documentation properly before reporting clearly documented security risks as new issues to PSIRTs. I myself work on PSIRT and encounter reports quite often where I have to inform reporters what they are describing is a misconfiguration or a known documented risk. So it is ironic that I don’t follow my own advice. Oh well, you live and you learn.

Thank you for reading, and Happy New Year!
